UTP Cable Installation: Complete Twisted Pair Installation Guide

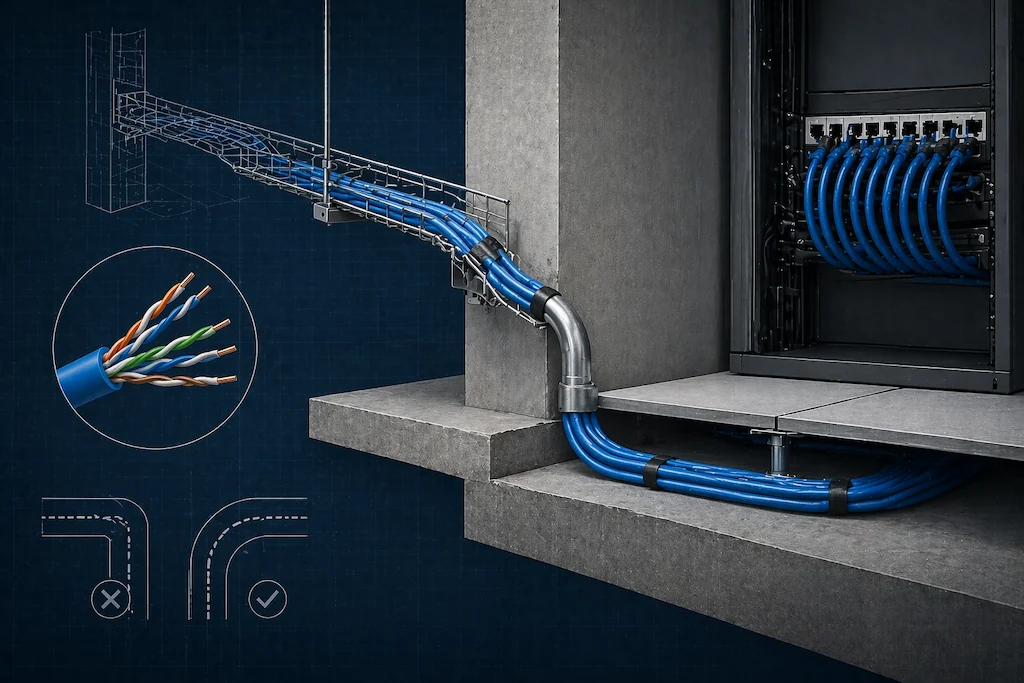

Proper UTP cable installation determines network reliability, data transmission speed and the service life of the entire cabling infrastructure. Whether the standards for indoor installation, outdoor installation and specific conditions such as underground installation are observed directly affects the throughput parameters and stability of the Internet connection. This material sequentially breaks down all stages: from selecting a reel and preparing the tools to crimping connectors and performing measurements on the finished line.

1. What Is Taken into Account Before Installation Begins

Before starting the installation, the route conditions are assessed. For outdoor installation, temperature variations, UV exposure, humidity and the likelihood of mechanical damage are critical. Indoor installation is sufficient in heated premises with a normal environment. If part of the route runs outdoors and part indoors, a sealed cable entry must be installed at the building entrance to prevent condensate migration under the sheath.

Let us outline the main factors that influence the installation technique:

• distance: proximity to the 100 m maximum length limit requires the minimum number of intermediate connections;
• presence of interference: near power cables, electric motors or welding equipment, choose FTP/STP or increase the separation distance;
• suspension method: if an overhead line is planned, for outdoor installation order UTP for outdoor installation with a messenger wire or a self‑supporting variant with an integrated steel load‑bearing element;
• sheath climate rating: for underground installation, polyethylene resistant to constant dampness is mandatory.

2. Climate Resistance and Installation Temperature

Each sheath type has an allowable installation temperature range. Standard PVC may be installed at temperatures from 0 °C to +50 °C. If the thermometer drops lower, the sheath stiffens and cracks when bent. Installation in sub‑zero conditions requires cold‑resistant grades that retain elasticity down to –25 °C and even –40 °C for the arctic version. In such cases the reel must be kept in a heated room for at least 12 hours, otherwise the inner layers remain frozen.

For outdoor installation in sunlight, resistance to ultraviolet radiation is a crucial point. Ordinary PVC deteriorates after 1–2 seasons under UV exposure, so black polyethylene with UV stabilisers is produced for outdoor routing. The colour is no coincidence: carbon black effectively absorbs UV and slows down plastic degradation.

3. Indoor Installation: Conduits, Walls, Suspended Ceilings

Indoor installation is implemented in several ways. The simplest is an open route along walls and ceilings. Conductors are fixed with dowel clamps or staples at 30–40 cm intervals. If additional protection is needed, laying in corrugated conduit is used. HDPE or PVC corrugated tube not only protects the twisted pair from crushing but also simplifies future replacement – the old cable is pulled out and the new one drawn in without disturbing the finish.

For concealed wiring indoors, plastic trunking or mini‑trunking is often used. In commercial buildings the principal method is laying in cable tray. A wire‑mesh or ladder‑type tray is rigidly fixed to the wall or ceiling, and the cables lie loosely inside. The requirements for fastening are more relaxed here, but a bundle of a dozen cables must be secured with nylon cable ties every 100–150 cm to prevent slipping.

A separate point is the passage through walls and floor slabs. Every opening is fitted with a sleeve, and after installation the gap is filled with non‑combustible foam or mineral wool. This complies with fire regulations and prevents fire spreading between compartments.

4. Outdoor Installation: Facades, Poles and Overhead Lines

All routes running outside buildings require outdoor installation. Three technologies are used most often:

• on the wall: the cable is fixed to the facade with clips and plugs; the distance between fastening points does not exceed 35 cm so that the wind does not sway the conductor;
• on a messenger wire: a galvanised steel messenger wire 2.0 mm or 2.5 mm in diameter is tensioned between anchors, and the UTP is lashed to it at 40–50 cm intervals with aluminium or plastic clamps; this type of outdoor installation is often chosen for bridging between buildings across roadways;
• self‑supporting cable: it has a factory‑integrated load‑bearing strand of steel wire covered by a common sheath; self‑supporting UTP dispenses with a separate messenger wire, saving considerable installation time.

With overhead installation, attention is paid to sag. Excessive tension leads to copper elongation and degradation of the twist characteristics. Insufficient tension leads to rocking and abrasion of the sheath against the clamps. The optimum sag is 1–2 % of the span length.

5. Underground Installation: Trenches, Protection, Depth

Underground installation is considered a difficult section of outdoor installation. Only UTP with a sheath of UV‑stabilised high‑density polyethylene is suitable for it. The standard minimum depth for pedestrian zones is 60 cm, for paved driveways – 100 cm. The trench bottom is backfilled with sand to a depth of 10 cm, the twisted pair is laid on the sand in a loop (“snake”), then again sand, warning tape and backfill.

Stony soils require an additional casing. Often a double‑wall corrugated pipe is used in the ground; it protects both against soil pressure and rodents. At the building entry, a waterproofing gland is installed to prevent capillary water ingress into the structure.

6. Installation in Conduit and in Tray: Requirements for Free Space

Installation in corrugated conduit is convenient for repairable systems. The internal diameter of the conduit is chosen so that the cables fill no more than 40 % of the tube cross‑section. This guarantees easy pulling and sufficient heat dissipation when operating PoE devices. For a single UTP of 5 mm diameter, a 16 mm conduit is used; for a bundle of three cables – 20–25 mm. When pulling into long runs, a steel draw tape and a water‑based lubricant approved for polymeric sheaths are essential.

In tray conductors are laid loosely but tied into harnesses. The distance from power cables to unshielded twisted pair in a metal tray is at least 50 mm, in a plastic tray – 120 mm. If intersection is unavoidable, it is made at a right angle, which reduces the induced interference voltage.

7. Twist, 8 Wires and Wire Pinout

The basic pinout of UTP is based on the TIA/EIA‑568A and 568B standards. The RJ45 connector accommodates eight contacts into which all 8 wires of the twisted pair are terminated. Correct wire pinout preserves the twist pitch of each pair right up to the contact – the conductors may be untwisted by a maximum of 13 mm. The 568B scheme is encountered more often in practice; its order is:

1. white‑orange
2. orange
3. white‑green
4. blue
5. white‑blue
6. green
7. white‑brown
8. brown

A straight‑through patch cable is crimped to the same scheme at both ends. A crossover cable is made to 568A at one end and 568B at the other; nowadays it is less needed, because MDI/MDI‑X auto‑detection in switches handles pair negotiation automatically. Nevertheless, it is useful for a technician to know both pinouts.

Important: during crimping the contact blades must pierce the insulation and enter the copper conductor, and the strain relief must grip the outer sheath. Poor crimping leads to increased attenuation and signal reflections.

8. Joining Sections, Splicing and Length Limitations

Almost all Ethernet standards limit the maximum length of the permanent horizontal run to 90 metres, plus 10 m for patch cords. The final 100 metres is the physical limit for 10/100/1000BASE‑T channels. Exceeding this causes attenuation beyond the permissible level, CRC error growth and a drop in throughput. If it is necessary to cover a distance greater than 100 m, an intermediate switch is installed or a switch to fibre optics is made.

A direct butt‑connection of two UTP sections is made using an RJ45 inline coupler or a telecommunications junction box with terminals. Each additional transition adds attenuation, so it is not recommended to place more than two connectors on a 100 m route.

9. Tools for Installation and Crimping

For high‑quality installation, tools are required that simplify every operation:

• stripper – removes the outer sheath without damaging the wire insulation;
• crimping tool – crimps RJ45, RJ11 connectors and sometimes telephone punch‑down contacts;
• twisted pair tester – performs basic measurements of pair continuity and correct pinout;
• cable analyser (certifier) – performs measurements of NEXT, ACR, return loss and determines category compliance;
• screwdriver set, side cutters, stripping knife;
• nylon or fibreglass draw tape from 10 m for blowing into conduits.

The quality of the crimping tool greatly affects the crimping. A good tool presses the contacts in parallel without lateral displacement and forms an even platform on each blade. After crimping, all 8 wires must be tested with a tester – these are the primary measurements for rejection.

10. Throughput, Categories and PoE

The channel throughput directly depends on the twisted‑pair category. Cat 5e guarantees 1 Gbps over 100 m. Cat 6 is capable of 10 Gbps, but the distance drops to 55 m due to alien crosstalk. Cat 6A extends the frequency range to 500 MHz and supports 10 Gbps over the full 100 m – it is recommended for new office projects. Cat 7 and Cat 7A are individually shielded, suppress interference better, but are more expensive.

Modern IP cameras, Wi‑Fi access points and telephones are powered using PoE technology. The voltage in such circuits reaches 57 V DC for PoE Type 4 (IEEE 802.3bt). UTP must have copper conductors with a cross‑section of at least 0.51 mm (24 AWG), otherwise heating will reduce throughput and may damage the insulation.

11. Interference Protection and Electromagnetic Compatibility

Unshielded twisted pair is sensitive to external fields. Near fluorescent lamps, powerful motors or welding machines, the amplitude of induced interference distorts the signal. The interference voltage may be sufficient to cause transmission errors. Therefore, installation routes are designed away from sources of electromagnetic radiation, and if they are present, shielded FTP/SFTP is used. The shield is grounded at both ends to avoid the formation of a parasitic loop.

12. Reel, Unwinding and Cable Preparation

A UTP reel arrives from the factory as a spool or in a cardboard box with the tail pulled out. Correct unwinding is by rotating the reel, not by dropping coils by hand. Letting coils drop freely twists the conductor, disrupts the pair twist pitch and can cause internal breaks. When cutting measured lengths, a reserve of 2–3 metres is left at each end for termination and crimping. An extra metre will allow re‑crimping the connector in the future without shortening the route.

13. Fastening, Clamps and Fixation in Various Environments

The fastening method is chosen according to the surface and material:

• concrete, brick – dowel clamp with a nylon nail;
• wood – staple with nails, plastic clip on a screw;
• metal – cable band or tie with a mounting base;
• to a messenger wire – aluminium clamps with a rubber insert that prevents over‑tightening.

When suspending on a messenger wire, it is important that clamps have no sharp edges. An uneven messenger wire or a corroded clamp quickly wears through the polyethylene sheath, exposing the copper conductors.

14. Measurements and Commissioning Tests

The final stage of any installation is measurements. A simple tester shows wire continuity and correct pinout. A professional analyser provides a detailed report: length, insertion loss, near‑end crosstalk (NEXT), power‑sum crosstalk (PS NEXT), return loss. Each installed line receives a passport confirming its suitability for operation at the declared Internet connection speed.

15. Final Recommendations

Observing the listed rules for UTP cable installation guarantees long‑term stable network operation. Attention to installation temperature, maximum pulling tension, bending radius and the quality of crimping connectors greatly reduces the risk of failures. The correct choice between indoor and outdoor installation types, as well as correct wire pinout, serves as the foundation for a reliable Internet connection in any environment – from a dry office to a damp trench. Read in detail about UTP cable in our guide: In detail about UTP cable. UTP cable production and available models are presented in the UTP cable production section.
