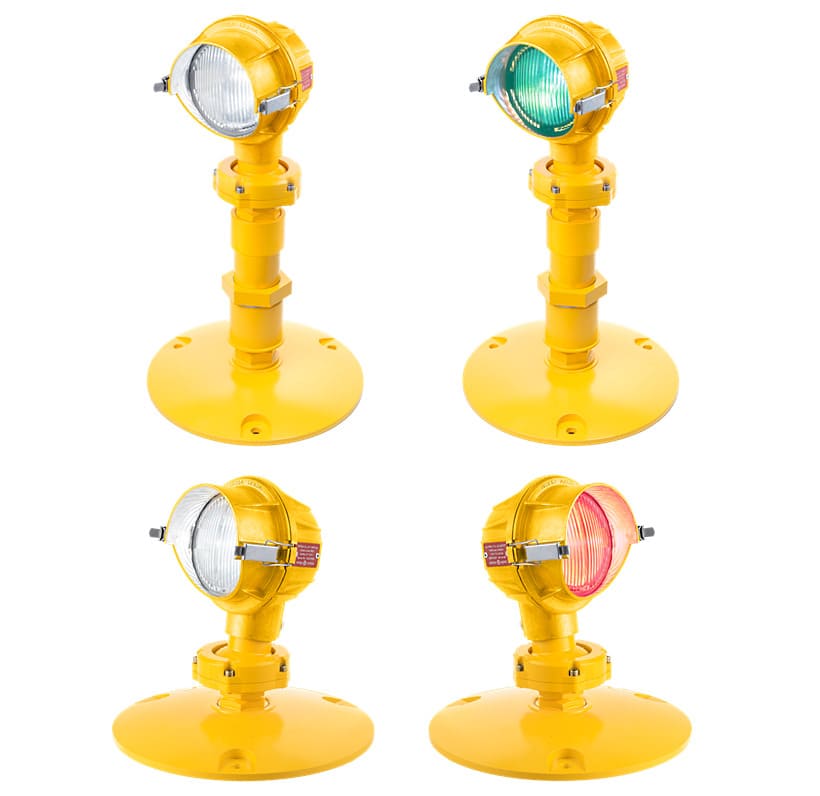

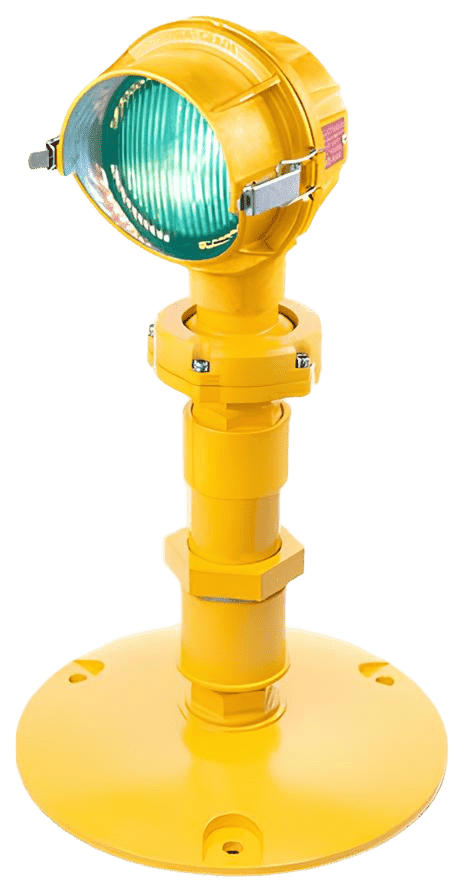

The GERDA EL-217 high-intensity elevated airfield light is designed for use in OVI airfield lighting systems powered by 6.6 A current from brightness regulators through series circuits and isolating transformers of appropriate capacity.
The GERDA-EL 217 series light complies with the requirements of the following regulatory documents: Aviation Regulations, Part 170, Certification of Aerodrome and Airway Equipment (AR-170), Volume II – Certification Requirements for Aerodrome and Airway Equipment, and ICAO Annex 14, Volume I – Aerodrome Design and Operations.
The GERDA-EL 217 series light can be used as:
— GERDA-EL 217-APH – Approach and horizon lights
— GERDA-EL 217-ASR – Approach side row lights
— GERDA-EL 217-THR – Runway threshold lights
— GERDA-EL 217-RWE – Runway end lights
–
–
| Usage |
| APH |
| ASR |
| THR |
| RWE |
| Color | |
| w | white |
| r | red |
| g | green |
| Power (W) |
| 100 |
| 150 |
| Name | Usage | Power (W) | Color | Luminous Intensity, cd |
| GERDA-EL 217-APH | Approach lights of the central row and horizon light | 150 | white | 27517 |
| GERDA-EL 217-ASR | Approach side lights | 150 | red | 9394 |
| GERDA-EL 217-THR | Threshold lights and flank horizon lights | 100 | green | 13427/10058 |
| GERDA-EL 217-RWE | End lights | 100 | red | 4858 |
| No. | Specifications | Parameters | ||
| 1 | Rated power, W | 100 and 150 | ||
| 2 | Rated current | 6.6 A | ||
| 3 | Light intensity and chromaticity coordinates | Compliant with AP-170, ICAO | ||
| 4 | Halogen lamp with pre-focusing | Base | PK30d or PKX30d | |
| Operating life Rated, hours | 1500 | |||
| Operating life Mixed, hours | >5000 | |||
| Luminous flux, lm | 150 W | min. 3600 | ||
| 100 W | min. 2700 | |||
| 5 | Insulation resistance at 1000 V dry, MΩ | ≥3000 | ||
| 6 | Wind load resistance | 150 m/s | ||
| 7 | Weight, kg | 1.6 kg + 0.8 kg coupling | ||
| 8 | Vibration resistance | 10 min. | ||
| 10 | Ingress protection (dust and moisture protection) | IP 54 | ||
| 11 | Materials | Housing | Aluminum alloy | |
| Cable and plug | PVC | |||
| Diffuser | Borosilicate glass | |||
| Mounting parts | Stainless steel | |||
| Reflector | Aluminum | |||
| 12 | Cable with plug | Length, cm | 30, 60, 100 | |
| Tensile force, N | 100 | |||
| 13 | Operating conditions | Ambient temperature from −55°C to +55°C Relative humidity up to 98% at +25°C | ||
| 14 | Service life, years | 25 | ||
