Spare parts and mounting parts

Spare parts table

Housings	Light Type			Photo
Housings	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo

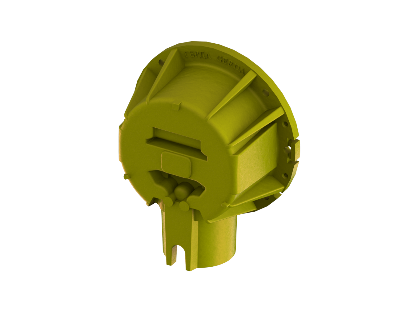

Light housing GERDA-EL 224/225	100.000	100.000

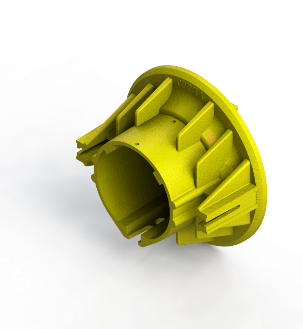

Light housing GERDA-EL 217			100.001

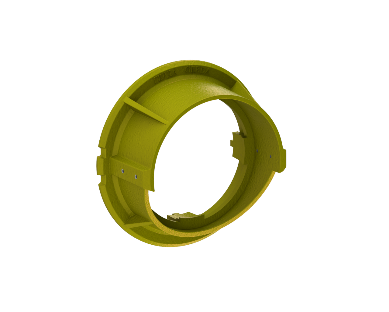

Cover for GERDA-EL 217			101.000

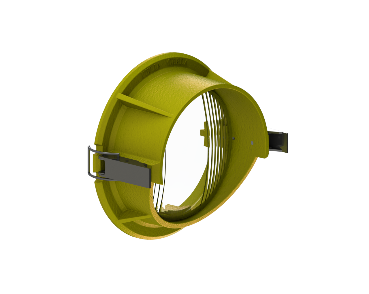

Cover with refractor lens assembly (ASR/THR/RWE)			101.001
Cover with refractor lens assembly (APH)			101.002

Fasteners	Light Type			Photo
Fasteners	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo
Cable gland	001.004	001.004	001.004
Clamp (GERDA-EL224/225)	001.005	001.005
Clamp (GERDA-EL217)			003.006
Latch retainer			003.010
Screw M8x20	001.021	001.021	001.021
Nut M8	001.022	001.022
Washer M8			003.022

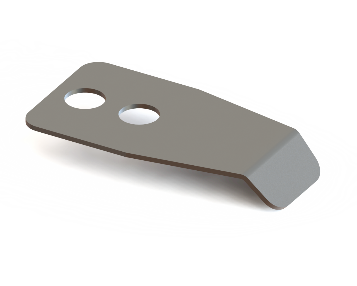

Spring plate	001.001	001.001
Spring plate			003.001
Screw M4x8	001.023	001.023	001.023

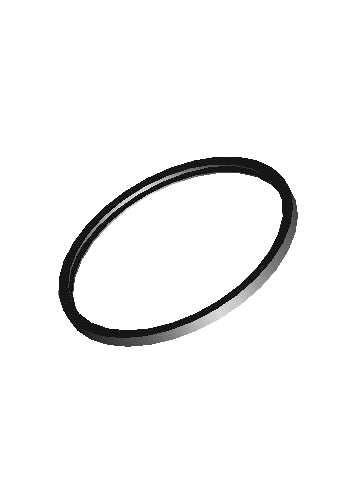

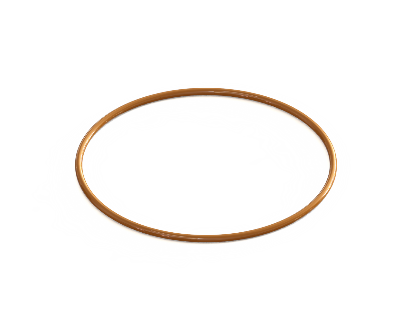

Sealing ring	001.024	001.024	001.024
Latch	300.001	300.001	300.001
Screw M3x10	001.025	001.025	001.025
Screw M5x8			003.008
Screw M5x10			003.009

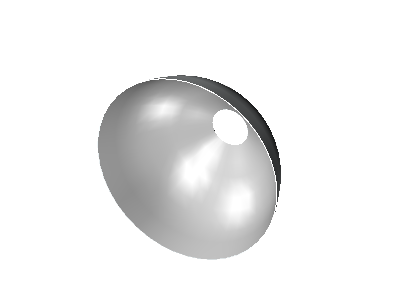

Reflector			003.002

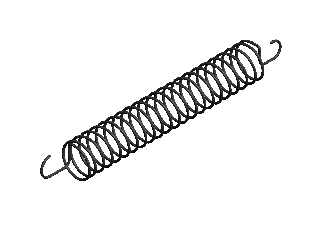

Reflector retaining spring			003.003
M3 bracket (latch mounting)	001.026	001.026
Screw M3x8	001.027	001.027
Clamping ring	001.002	001.002

Accessories	Light Type			Photo
Accessories	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo
Silicone grease with PTFE MS	001.029	001.029	001.029
Dichroic filter gasket			003.004

Diopters	Light Type			Photo
Diopters	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo
Diopter with assembled lenses white/white		300.001
Diopter with assembled lenses white/yellow		300.002
Diopter with assembled lenses yellow/white		300.003
Diopter with assembled lenses white/plug		300.004
Diopter with assembled lenses plug/white		300.005
Diopter with assembled lenses yellow/plug		300.006
Diopter with assembled lenses plug/yellow		300.007
Diopter with assembled lenses green/red		300.008
Diopter with assembled lenses red/green		300.009
Diopter with assembled lenses green/plug		300.010
Diopter with assembled lenses plug/green		300.011
Diopter with assembled lenses red/plug		300.012
Diopter with assembled lenses plug/red		300.013
Diopter with assembled ring, blue	310.001
Diopter with assembled ring, white	310.002

Mounting Parts	Light Type			Photo
Mounting Parts	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo
Break coupling post Ø60	001.006	001.006
Break coupling post Ø60 (G2″ thread)			003.007
Break coupling post (NPSM2″ thread, Ø60mm)			003.007-1

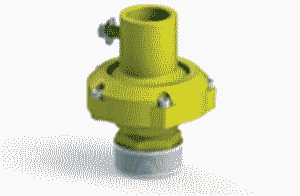

Short break coupling Ø60mm (G2″ thread)	400.001	400.001
Short break coupling Ø60 (NPSM2″ thread)	400.001-1	400.001-1
Adjustable break coupling for post Ø60mm (G2″ thread)	400.002	400.002	400.002
Adjustable break coupling for post Ø60mm (NPSM2″ thread)	400.002-1	400.002-1	400.002-1
Swivel break coupling (G2″ thread)			400.003
Extended swivel break coupling (G2″ thread)			400.004
Swivel break coupling (NPSM2″ thread)			400.003-1
Extended swivel break coupling (NPSM2″ thread)			400.004-1
Adapter M-217 (G2″ thread)			400.006
Adapter M-217 (NPSM2″ thread)			400.006-1

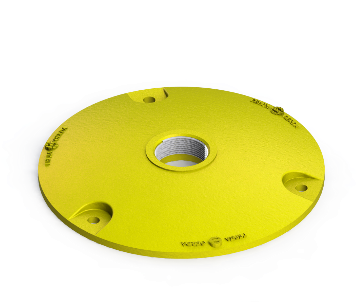

Base plate (G2″ thread)	001.003	001.003	001.003
Base plate (NPSM2″ thread)	001.003-1	001.003-1	001.003-1
Gasket for base plate	001.035	001.035	001.035

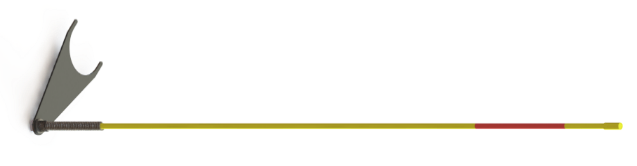

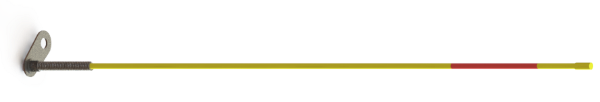

Rod 750 mm (G2″ thread)	500.001	500.001	500.001
Rod 1000 mm (G2″ thread)	500.002	500.002	500.002
Rod 1500 mm (G2″ thread)	500.003	500.003	500.003
Rod 750 mm (NPSM2″ thread)	500.001-1	500.001-1	500.001-1
Rod 1000 mm (NPSM2″ thread)	500.002-1	500.002-1	500.002-1
Rod 1500 mm (NPSM2″ thread)	500.003-1	500.003-1	500.003-1

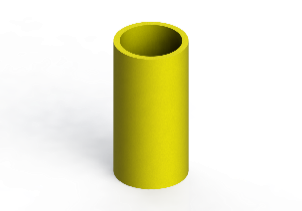

Socket (G2″ thread)	500.004	500.004	500.004
Rod mounting socket (NPSM2″ thread)	500.004-1	500.004-1	500.004-1

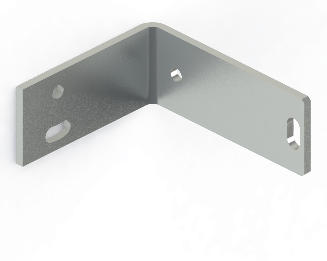

Rod mounting bracket	500.005	500.005	500.005
Stake 700 mm high	500.008	500.008	500.008
Stake 1000 mm high	500.008-1	500.008-1	500.008-1

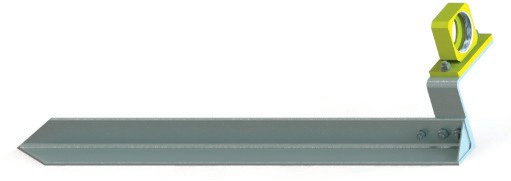

Stake 700 mm high with break coupling mount	500.008-2	500.008-2	500.008-2
Stake 1000 mm high with break coupling mount	500.008-3	500.008-3	500.008-3

Tools	Type of Light			Photo
Tools	GERDA-EL 224	GERDA-EL 225	GERDA-EL 217	Photo
Open-end wrench S=50 mm	600.001	600.001	600.001
Open-end wrench S=75 mm	600.002	600.002
Split socket wrench S=22	600.004	600.004	600.004
Hex key 6 mm	600.005	600.005	600.005
Flat-blade screwdriver SL5	600.006	600.006	600.006
Flat-blade screwdriver SL4	600.007	600.007	600.007
